Psi-Value Calculator for Three Rooms

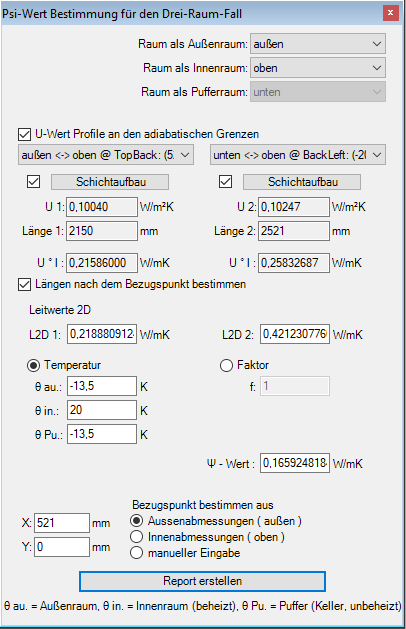

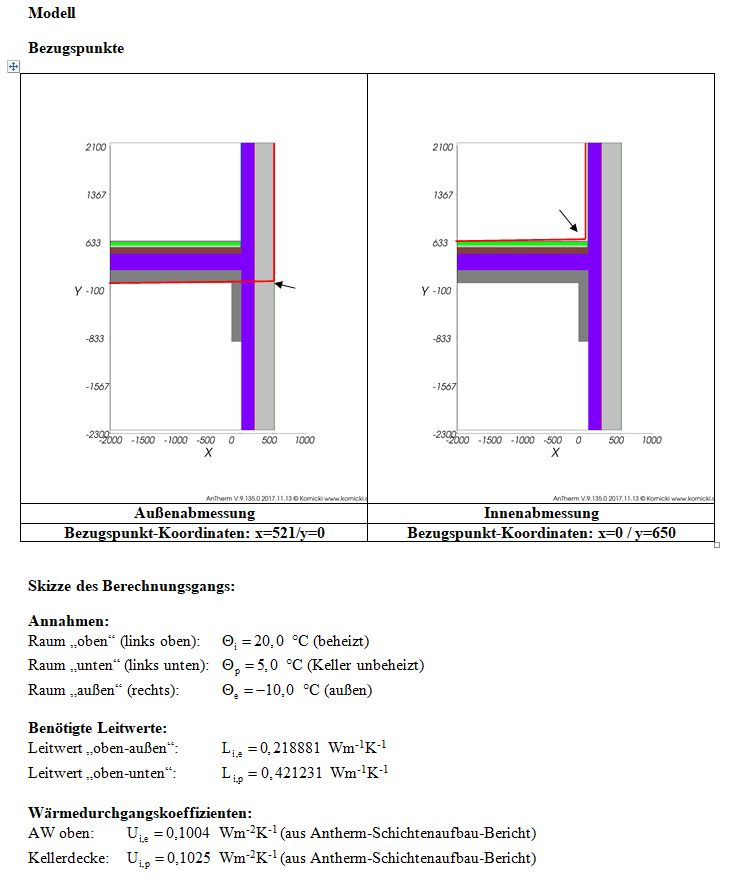

AnTherm Version 9.136 has the Psi Value Calulator for Three Rooms (with an unheated buffer room) as a new tool. It starts with a 2D calculation for a building construction which tightly connects these three rooms. The temperatures for the three rooms can be either entered separately or it is possible to enter a temperature factor. It is important to enter the rooms in the correct order.

See also: Coupling Coefficients Report, Material Report Psi-Value Calculator (Tool), U-Value Calculator (Tool), Project types, Thermal transmission coefficient, Zur Berechnung von Ψ-Werten für Baukonstruktionen im Bereich bodenberührter Bauteile, EN ISO 14683, EN ISO 13789

 Model, Calculate, Simulate and Analyse Thermal Heat Bridges in 2D and 3D with AnTherm®
