Export to CSV file

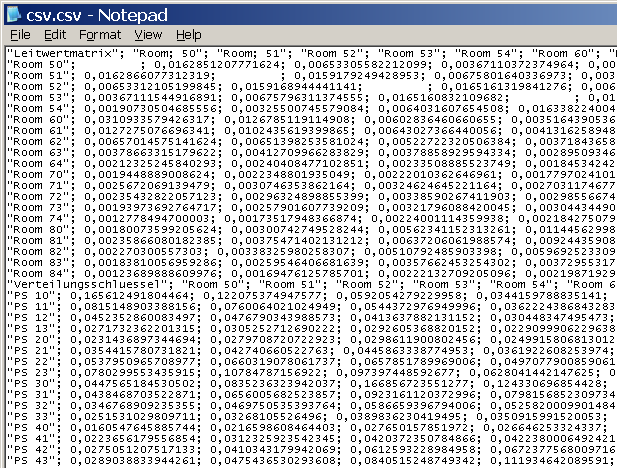

The matrix of thermal coupling coefficients (conductance matrix) and of power source distribution keys can be saved as a CSV file.
The CSV file can be read by other application (e.g. Excel) for further processing.
Typically the conductance matrix of coupling coefficients (space to space) is exported. If there are power sources within the construction then distribution table (power source to space) is exported also.
Remark: The export operation is executed in current localization of the operating system (the list separator and decimal comma follow the setting of the operating system).
See also: Menu File→Export→Coupling Coeff. Matrix
