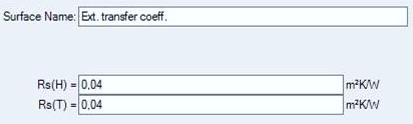

Surface Editor window

Surface Editor is used to maintain properties of surface. This window is displayed as part of Surfaces window.

Surface name Name of surface. It is used for documentation purpose.
RS Defines the thermal transfer resistance of the surface. RS = 1 / α
New Adds a new entry to the surface list and selects it for editing.
Delete Deletes the currently selected surface from surface list.
Prev. Selects previous surface in the surface list for editing.
Next Selects next surface in the surface list for editing.

Important: Changes to surface properties in the project specific surface list do not automatically propagate to properties of construction elements. Applying new surface properties to selected elements must be done explicitly - either by a double-click onto a list item or via a drag-drop operation from the surface list.

Note: You shall switch between input fields by using the TAB-key. Using that key confirms the data entry. On the other hand it provides a good alternative compared to permanent mouse use.

See also: Surfaces window, Alpha (surface transmittance) hidden (application setting)
